Portable Upgradeable DEsktop PC

"it's built different!"

Built strong.

Built to last

eBlaztr is made with strong, industrial-grade parts. If something breaks or wears out, you can replace parts of the case instead of the whole system.

  • 1.5 MM Stamped Aluminium
  • Built with fiber-reinforced nylon — the kind used in car body parts.

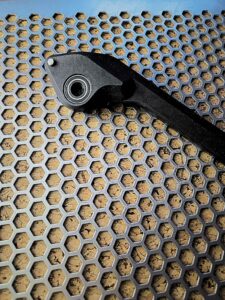

  • Machine-style mechanisms with dual bearings — not plastic hinges.

"one Case is all you need"

Buy the case once. Build forever.

eBlaztr is not a disposable PC. It’s a long-term platform. A real desktop you can:

  • move
  • upgrade
  • Big enough for high end components
  • Small enough to pack away

Standard Components

Uses standard PC parts

  • Standard ITX motherboard
  • Standard graphics cards (up to 33 cm / 12.9″)
  • Standard SFX Power Supply

Made to be easy

  • Easy to access inside
  • Parts can be removed with normal tools
  • Built to be easy to fix and upgrade

Cooling support

  • Supports low-profile CPU coolers up to 57 mm

replaceable Monitor

  • Fits standard VESA 100×100 mounts
  • Monitor is not glued or bonded – it can be removed or replaced
  • Best with 25″ monitors (27″ also works)
  • Monitor ports must face downward

eBlaztr Patent

The patented legs make eBlaztr quick to set up and quick to pack away.

Slow motion



eBlaztr is Fulfilled By Amazon US which means:

✔ Fast shipping · ✔ Easy returns · ✔ Amazon checkout

👉 Order your eBlaztr on Amazon.com

or Check out where you Can find a Local Trusted Provider Near you Across Europe and UK in our

“Where to Buy”

Section

🔧 Recommended eBlaztr Configuration

Want to get the most out of your eBlaztr build?
Here’s our hand-picked setup — tested for performance, thermals, and compatibility within the eBlaztr form factor:

  • 🖥️ Monitor: 24,5″ AOC Gaming 25G4SXU

  • 🎮 GPU: ASUS GeForce RTX 5070 Ti 16GB PRIME OC

  • ⚡ PSU: Seasonic SPX 750 — reliable, efficient, and built for serious loads

  • 🧠 Motherboard: Gigabyte B650I AX — AM5 socket, compact and feature-rich

  • 🧬 RAM: G.Skill Trident Z5 Neo RGB DDR5-6000, 32GB (CL26, AMD EXPO)

  • 🚀 M.2 SSD: Samsung 990 Pro 2TB — blazing fast storage for OS and games

  • ❄️ Cooler: Cryorig C5 CU — fits within the 57mm height limit and handles the heat with it’s 180 TDP!

  • 🎮 CPU: AMD Ryzen 7 9800X3D- together with it’s littlebrother 7800X3D Both delivers the best performance to TDP ratio in the premium category
  •

This setup balances raw power, upgradability, and thermal control — all within the eBlaztr’s ultra-portable frame.
Whether you’re gaming, creating, or just building for the thrill of it — this config hits the sweet spot.

⚠️ Note for First-Time Builders:
This recommended setup is a great starting point — especially if you’re stepping into your first eBlaztr build and want a well-balanced, compatible configuration.

That said, we always encourage more experienced users to experiment, optimize, and build to their own preferences. There are real benefits to exploring different setups, depending on your use case.

For example, recommended built includes a high Hz monitor — perfect for competitive gamers, but it might not be what you need. You could prioritize color accuracy, resolution, or budget instead.
also in a time of expensive hardware. it’s possible to use Older components such as DDR4 Ram.

There’s no single “perfect” build — just the perfect one for you.

Hardware specifications, layout, and design decisions

At its core, every eBlaztr is built from four essential components:

🖥️ Monitor (24-27″)
🎮 Graphics Card (GPU)
🧠 Motherboard (with CPU, SSD, Cooler and RAM)
⚡ Power Supply (SFX PSU)

That’s it. No fluff, no filler — just the critical hardware you need for serious performance, all packed into a portable, upgradable system.

🖥️What kind of monitor works with eBlaztr?

Works with standard monitors
• Standard VESA mount
• Easy to remove or replace the monitor

• Cables must plug in from the bottom
• Best with 25″, supports 27″

27 inch is more exposed, whereas the 25-inch is more protected by the case itself. We recommend 25 inch for ease of use. however the eBlaztr handles 27 inch just fine

🎮 GPU Requirements for eBlaztr

To fit and function properly inside the eBlaztr, your graphics card must meet the following specs:

  • Max Length: 330 mm (≈ 13 inches)

  • Max Width: 150 mm (≈ 5.9 inches)

  • Max Thickness: 70 mm (≈ 2.75 inches)
    ⚠️ Note: Some GPUs claim to be 70 mm thick but can be slightly larger due to shrouds or backplates. Please double-check dimensions carefully.

  • Max Power (TDP): 300W

Choosing the right GPU ensures proper fit, airflow, and performance — no squeezing, no overheating, no surprises.

⚡ PSU Requirements for eBlaztr

Supported Form Factors:

  • SFX

  • SFX-L

Your PSU powers everything — and it’s often the most underestimated component in a build.

Make sure your power supply:

  • Matches your system’s total power draw

  • Is built with high-quality components

  • Comes from a reliable brand

Handling high wattage in a compact space isn’t the place to cut corners. That’s why we recommend Seasonic — a trusted name with a long-standing reputation for consistent, high-quality performance.

That said, other brands can work too — just be sure they meet the same standard of reliability. In a system like this, your PSU is not where you want to take risks.

🧠 Motherboard Requirements for eBlaztr

eBlaztr supports any brand, as long as the form factor is ITX — no exceptions here.

  • Cooler Height Limit: 57 mm (≈ 2.24 inches)

  • Make sure your CPU cooler not only fits physically, but can handle the thermal output (TDP) of your system.

  • RAM clearance is also key — Adjust to your type of cooler low-profile modules? be sure before you press purchase. or ask our audience in Discord for tips

Make sure to check all measurements twice.

we aren’t deep diving into the variations of CPU’s and rams, and advise you to research these aspects yourself.

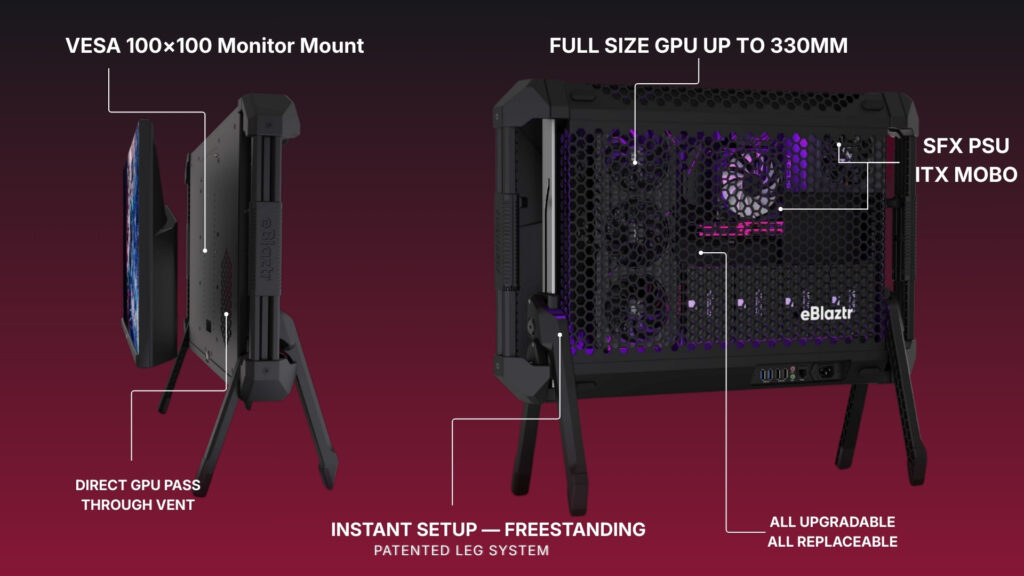

System Compatibility

CPU / Motherboard

  • Standard Mini-ITX motherboard

  • Desktop-class CPUs

  • Socket compatibility depends on motherboard choice

  • CPU cooler height limit: 57 mm

GPU

  • Full-size desktop GPU

  • Max length: 330 mm

  • Slot limit: 3-slot

Cooling & Power

    • SFX and SFX-L PSU supported

    • Designed for vertical airflow

Monitor

    • VESA 100×100 Mount.
      not bonded

    • 27 Inch Monitor max. (we Recommend 25 inch. for ease of Use. but 27 works. it’s just more inconvenient)

    • Monitor connectors must be bottom-facing
